Overview

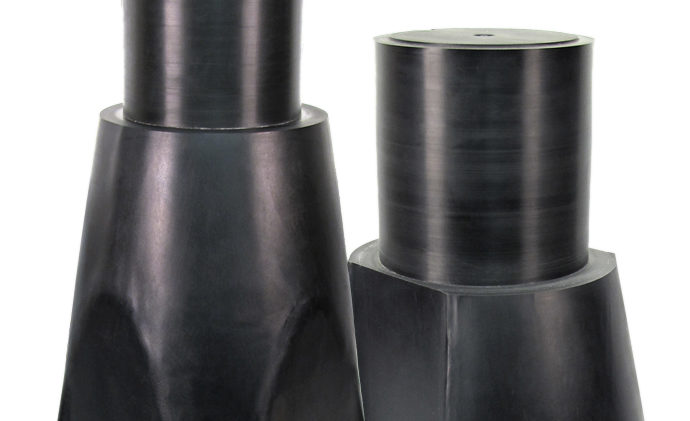

Polychem idler stub shafts are the lightweight alternative to traditional full-width steel shafting and cast iron wall bearings. We offer two base diameters and lengths to accommodate sprocket centerlines from 9 to 29 inches off the wall, allowing customized stub shafts to fit various tank sizes, system loadings, and existing structural conditions.

Features

  • Engineered to maintain strength & minimize deflection

  • Laterally adjustable up to 2 inches in the field

  • High-strength Cast Nylon 6 material

Learn More About Polychem

Industrial Chain & Flight System
Specifications

Specifications

Complementary Components

Complementary Components

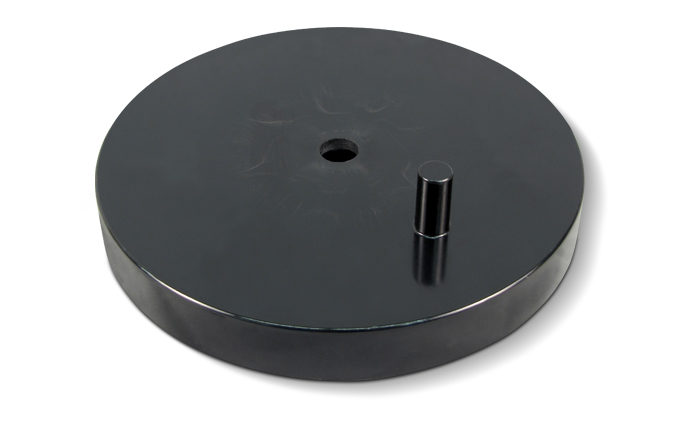

Retainer Plate

Sprockets can be secured to the stub shaft with a single bolt using the polycarbonate retainer plate.

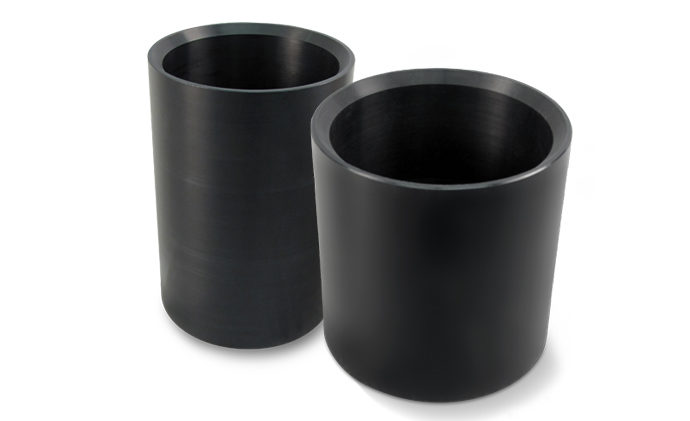

Bearings

The water-lubricated UHMW-PE tubular bearings spin on the spindle and are keyed to the outer end tubes to support the shaft. Oil-filled Nylon 6 bearings are available for specific cases where high temperatures and chemicals corrode UHMW-PE.

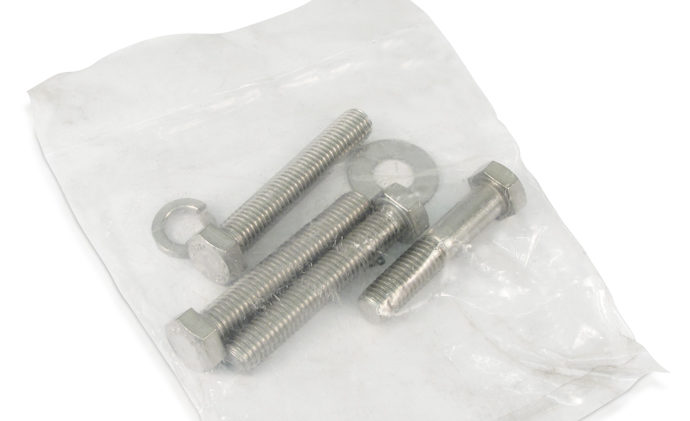

Hardware

hardware kit utilizes 316 SS leveling bolts to allow for proper alignment and adjustability in the field.

System Animation

System Animation

Learn how all the components in a standard Polychem system are assembled and installed.
